Heading Gear and Track

Track, skips, and bogies are available in a range of sizes and specifications, with a particular focus on 18" gauge - though other gauges can be supplied on request.

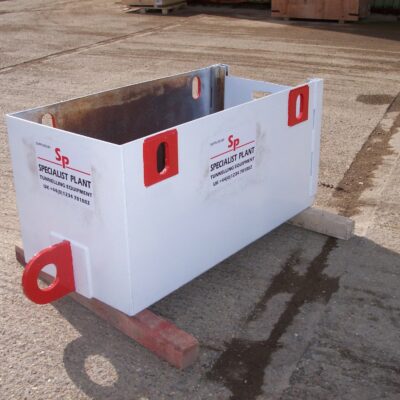

Heading Skips

Ideal for use in small headings, featuring a lift-out end door for easy emptying. A low headroom rail bogie is available to suit.

Available capacities:

  • 0.3m³     (SWL 800kg)
  • 0.43m³   (SWL 1200kg)

Contact

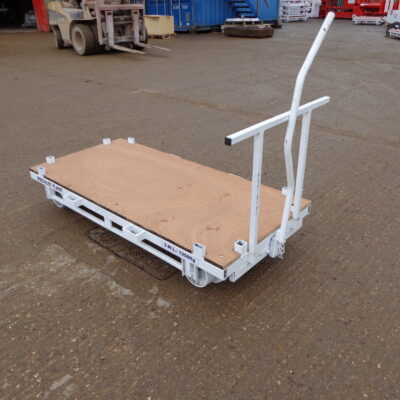

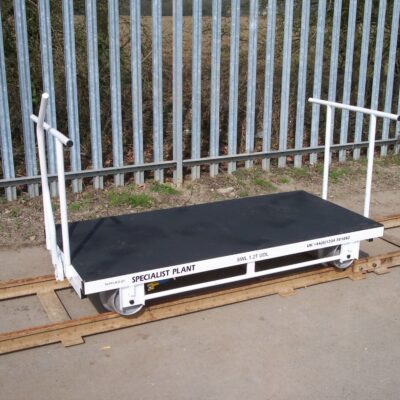

Bogies

Available in a range of sizes, with three main styles to suit different applications:

  • Standard rail bogies – 457mm / 610mm gauge
  • Low-headroom bogies – 457mm gauge
  • Braked ‘Link’ bogies – 457mm / 610mm gauge

Contact

Track

Track and rail are available in a range of sizes and weights to suit your tunnelling needs:

  • 457mm gauge – ‘Jubilee’ track with panels, fishplates, and bolts
  • 610mm gauge – 35lb rail with sleepers, fishplates, and bolts
  • Slide rails – 457mm gauge
  • Turnouts – 457mm / 610mm gauge
  • Turntables – 457mm / 610mm gauge

Contact
